Aventics VVST-5/2XX-SR-230AC Electric and Pneumatic Actuated Directional Valve

Spool valve, Single valve, Pipe connection. View other configurations.

Call for pricing
Part Numbers
  • VVST-5/2XX-SR-230AC
  • 0820030050
Highlights...

Features

  • Activation: Electrically
  • Compressed air connection output: G 1/8
  • Electrical Connection 2: ISO 15217, form C
  • Flow L M: 280 l/min
  • Housing Material: Stainless Steel
  • Industry: Industrial
  • Manual Override: without detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: 2 bar
  • Operating Voltage: 230 V AC
  • Seat Seal Type: metal/metal sealing

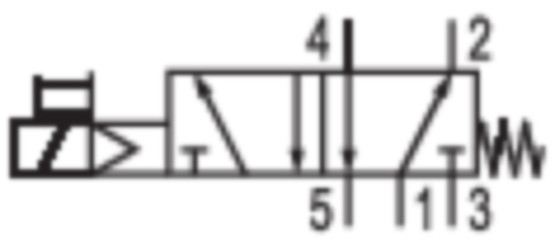

  • Switching principle: 5/2, with spring return
  • Valve Pilot: Internal
  • Dimension: 4.53x0.59x1.97 (inches)
View other configurations.
AVENTICS 5/2-directional valve, Series ST 0820030050
