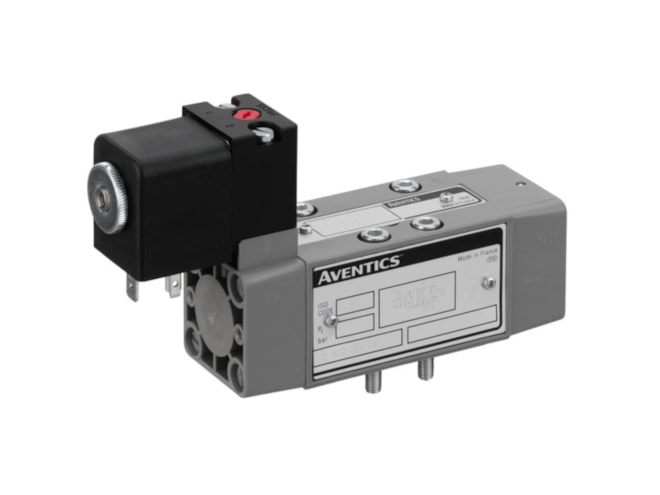

Aventics ED 5/2 ISO1 220V BIST. Electric and Pneumatic Actuated Directional Valve

View other configurations.

Call for pricing
Part Numbers
  • ED 5/2 ISO1 220V BIST.
  • 0820024501
Highlights...

Features

  • Activation: Electrically
  • Electrical Connection 2: EN 175301-803, form A
  • Electrical Connection Type 2: Plug
  • Flow L M: 1060 l/min
  • Industry: Industrial
  • Manual Override: with detent
  • Max Operating Pressure Range: 10 bar
  • Max Working Pressure: 10 bar
  • Operating Voltage: 230 V AC
  • Operational voltage AC at 50 Hz: 230 V
  • Operational voltage AC at 60 Hz: 230 V
  • Protection class: IP65
  • Seat Seal Type: Soft seal
  • Standards and Regulations: ISO 5599-1
  • Valve Pilot: Internal
View other configurations.
AVENTICS 5/2-directional valve, Series IS12, size 1 0820024501
