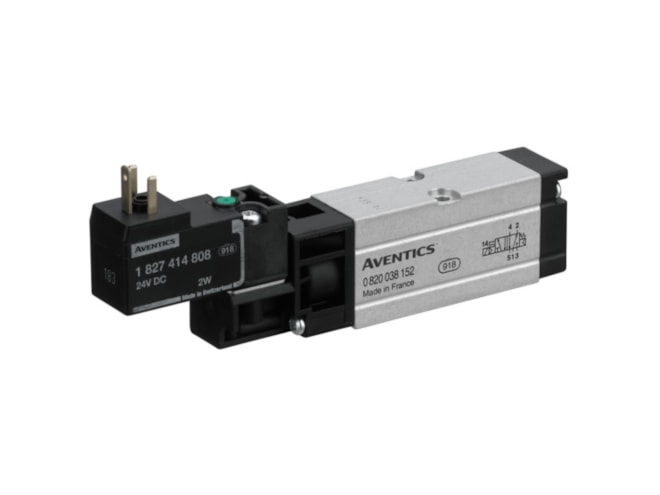

Aventics CD02-5/2DS-NONE Electric and Pneumatic Actuated Directional Valve

View other configurations.

$74.49
Part Numbers
  • CD02-5/2DS-NONE
  • 0820038957
Highlights...

Features

  • Activation: Electrically
  • Electrical Connection 2: ISO 15217, form C
  • Electrical Connection Type 2: Plug
  • Flow L M: 450 l/min
  • Industry: Industrial
  • Max Operating Pressure Range: 10 bar
  • Max Working Pressure: 10 bar
  • Protection class: IP65
  • Seat Seal Type: Soft seal
  • Standards and Regulations: ISO 15407-1
  • Valve Configuration: Basic valve without pilot valve
  • Valve Pilot: Internal
  • Dimension: 5.91x1.77x0.98 (inches)
View other configurations.
AVENTICS 5/2-directional valve, Series CD02-AL 0820038957
