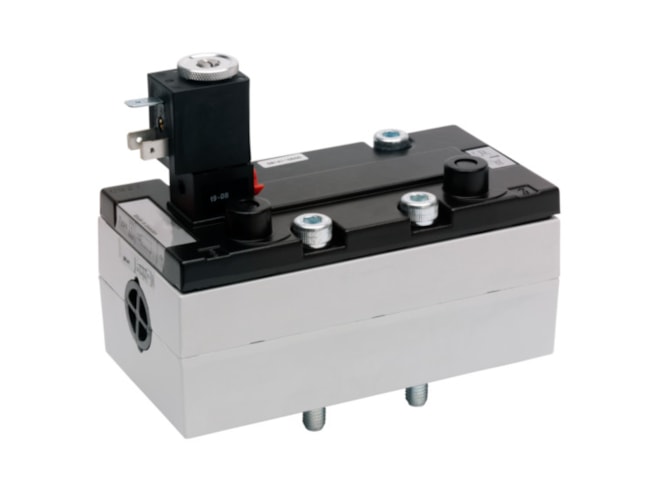

Aventics V581-5/2SR-110AC-I4-1P22-HBX-AA-X-C-T1 Electric and Pneumatic Actuated Directional Valve

Features

• Activation: Electrically
• Electrical Connection 2: Form B, industry
• Electrical Connection Type 2: Plug
• Flow L M: 6000 l/min
• Industry: Industrial
• Manual Override: with detent
• Max Operating Pressure Range: 10 bar
• Max Working Pressure: 10 bar
• Operating Voltage: 110 V AC
• Operational voltage AC at 60 Hz: 110 V
• Protection class: IP65
• Seat Seal Type: Soft seal
• Standards and Regulations: ISO 5599-1
• Switching principle: 5/2, with spring return
• Valve Pilot: Internal
• Dimension: 5.91x4.72x3.15 (inches)
