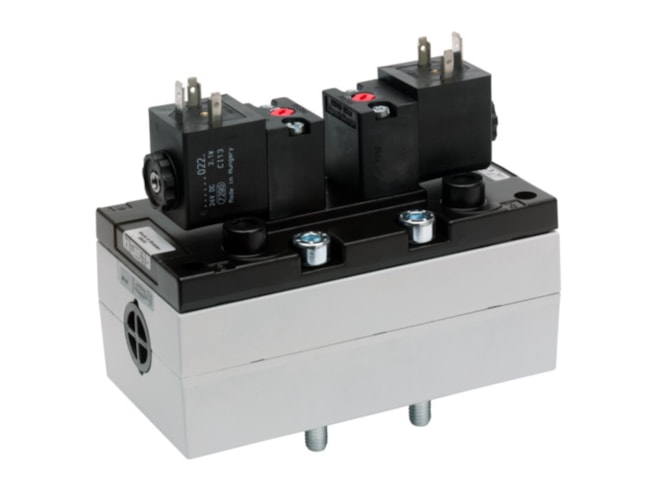

Aventics V581-5/3CC-024DC-I4-2CNO-LBX-AA-X-C-T1 Electric and Pneumatic Actuated Directional Valve

Features

• Activation: Electrically
• DC operating voltage: 24 V
• Electrical Connection 2: EN 175301-803, form A
• Electrical Connection Type 2: Plug
• Flow L M: 5000 l/min
• Industry: Industrial
• Manual Override: with detent, without detent
• Max Operating Pressure Range: 10 bar
• Max Working Pressure: 10 bar
• Operating Voltage: 24 V DC
• Protection class: IP65
• Seat Seal Type: Soft seal
• Standards and Regulations: ISO 5599-1
• Switching principle: 5/3, closed center
• Valve Pilot: Internal
• Dimension: 9.17x5.47x3.46 (inches)
