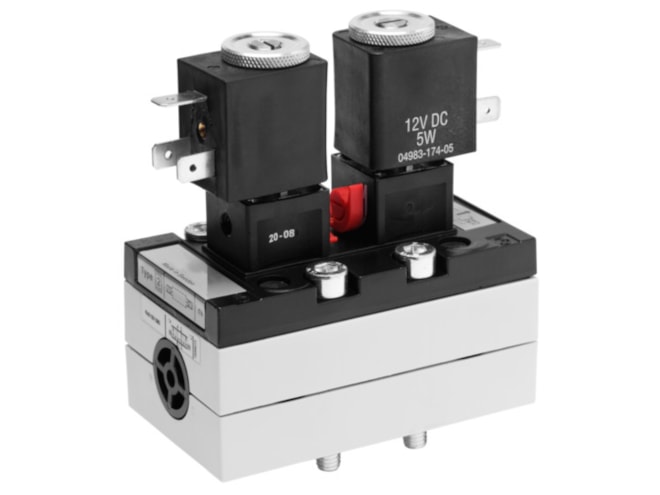

Aventics V581-5/3EC-NONE-I2-2P22-HBX-PA-X-S-T0 Electric and Pneumatic Actuated Directional Valve

View other configurations.

Call for pricing
Part Numbers
  • V581-5/3EC-NONE-I2-2P22-HBX-PA-X-S-T0
  • 5812522000
Highlights...

Features

  • Activation: Electrically
  • Electrical Connection 2: Form B, industry
  • Electrical Connection Type 2: Plug
  • Flow L M: 2100 l/min
  • Industry: Industrial
  • Manual Override: with detent
  • Max Operating Pressure Range: 10 bar
  • Max Working Pressure: 10 bar
  • Protection class: IP65
  • Seat Seal Type: Soft seal
  • Standards and Regulations: ISO 5599-1
  • Switching principle: 5/3, exhausted center
  • Valve Configuration: Basic valve without coil
  • Valve Pilot: External
  • Dimension: 3.94x3.54x1.97 (inches)
View other configurations.
AVENTICS 5/3-directional valve, Series 581, size 2 5812522000
