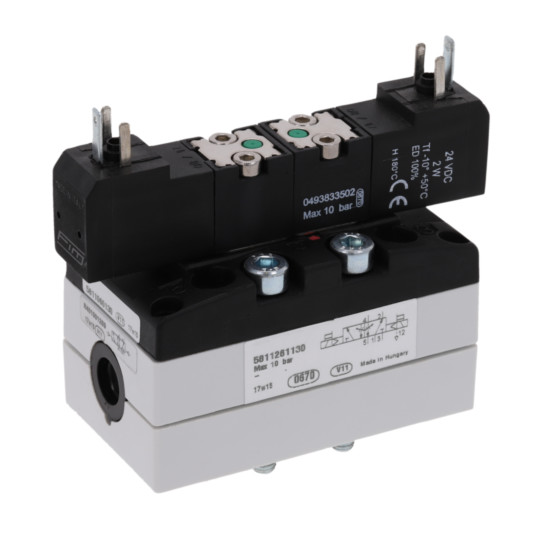

Aventics V581-5/3EC-024DC-I1-2P15-LUA-PP-X-S-T0 Electric and Pneumatic Actuated Directional Valve

Name: Aventics V581-5/3EC-024DC-I1-2P15-LUA-PP-X-S-T0 Electric and Pneumatic Actuated Directional Valve
Availability: BackOrder

View other configurations.

Call for pricing

Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.

Part Numbers

V581-5/3EC-024DC-I1-2P15-LUA-PP-X-S-T0
5811562130

Highlights...

V581-5/3EC-024DC-I1-2P15-LUA-PP-X-S-T0
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
DC operating voltage: 24 V
Electrical Connection 2: ISO 15217, form C
Electrical Connection Type 2: Plug
Flow L M: 1100 l/min
Industry: Industrial
Manual Override: without detent
Max Operating Pressure Range: 10 bar
Max Working Pressure: 10 bar
Operating Voltage: 24 V DC
Protection class: IP65
Seat Seal Type: Soft seal
Standards and Regulations: ISO 5599-1

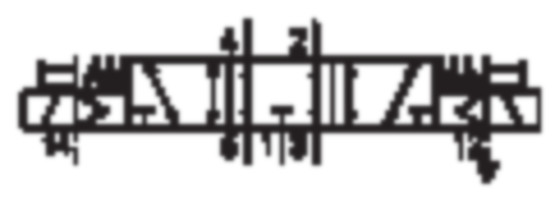

Switching principle: 5/3, exhausted center
Valve Pilot: External
Dimension: 3.74x2.56x2.17 (inches)

View other configurations.

AVENTICS 5/3-directional valve, Series 581, size 1 5811562130
