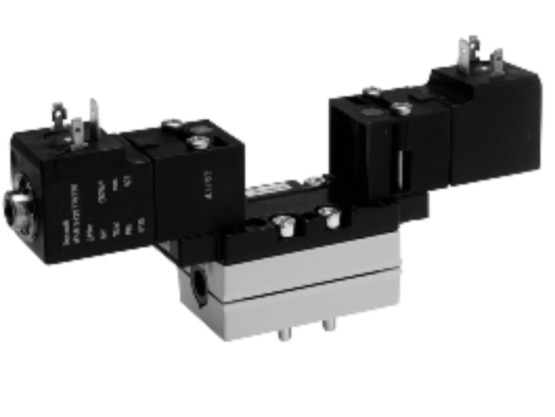

Aventics V581-5/3CC-024DC-I1-2CNF-HUX-AA-X-S-T1 Electric and Pneumatic Actuated Directional Valve

Name: Aventics V581-5/3CC-024DC-I1-2CNF-HUX-AA-X-S-T1 Electric and Pneumatic Actuated Directional Valve
Availability: BackOrder

View other configurations.

Call for pricing

Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.

Part Numbers

V581-5/3CC-024DC-I1-2CNF-HUX-AA-X-S-T1
5811493190

Highlights...

V581-5/3CC-024DC-I1-2CNF-HUX-AA-X-S-T1
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
DC operating voltage: 24 V
Electrical Connection 2: EN 175301-803, form A
Electrical Connection Type 2: Plug
Flow L M: 1100 l/min
Industry: Industrial
Manual Override: without detent
Max Operating Pressure Range: 10 bar
Max Working Pressure: 10 bar
Operating Voltage: 24 V DC
Protection class: IP65
Seat Seal Type: Soft seal
Standards and Regulations: ISO 5599-1

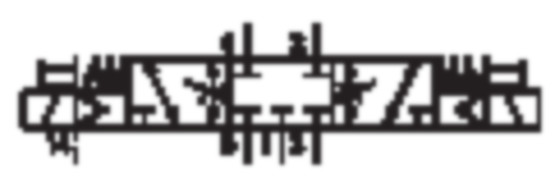

Switching principle: 5/3, closed center
Valve Pilot: External
Dimension: 7.87x3.54x1.18 (inches)

View other configurations.

AVENTICS 5/3-directional valve, Series 581, size 1 5811493190

Spec Sheets
