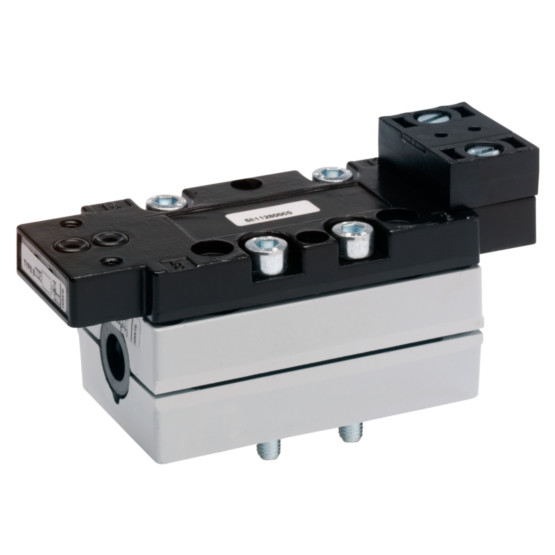

Aventics V581-5/2DP-I1-2CNA-AA-X-C-T1 Electric and Pneumatic Actuated Directional Valve

View other configurations.

Aventics V581-5/2DP-I1-2CNA-AA-X-C-T1 Electric and Pneumatic Actuated Directional Valve — Aventics-V581-5/2DP-I1-2CNA-AA-X-C-T1

Call for pricing

Part Numbers

V581-5/2DP-I1-2CNA-AA-X-C-T1
5811281000

Highlights...

V581-5/2DP-I1-2CNA-AA-X-C-T1
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Flow L M: 1400 l/min
Industry: Industrial
Max Operating Pressure Range: 16 bar
Max Working Pressure: 16 bar
Protection class: IP65
Seat Seal Type: Soft seal
Standards and Regulations: ISO 5599-1

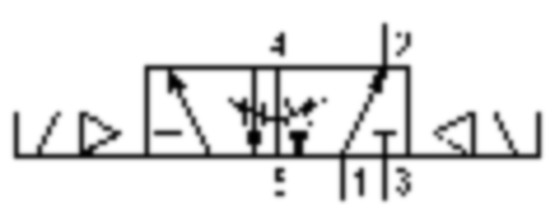

Switching principle: 5/2, double solenoid
Valve Configuration: Basic valve without pilot valve
Valve Pilot: External, Internal
Dimension: 9.06x4.72x1.97 (inches)

View other configurations.

AVENTICS 5/2-directional valve, Series 581, size 1 5811281000
