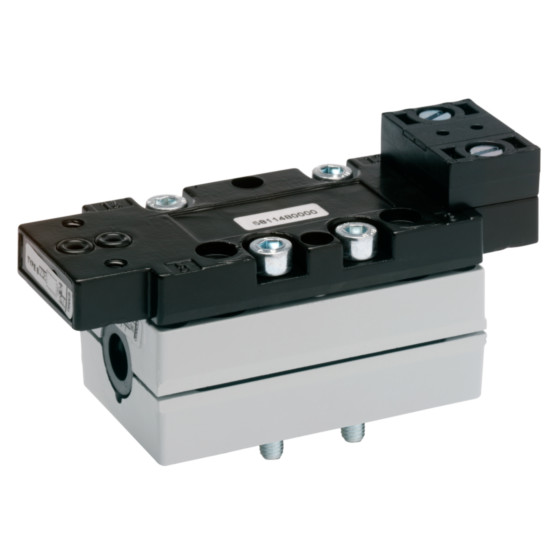

Aventics V581-5/3PC-I1-2CNA-AA-X-C-T1 Electric and Pneumatic Actuated Directional Valve

View other configurations.

Aventics V581-5/3PC-I1-2CNA-AA-X-C-T1 Electric and Pneumatic Actuated Directional Valve — Aventics-V581-5/3PC-I1-2CNA-AA-X-C-T1

Call for pricing

Part Numbers

V581-5/3PC-I1-2CNA-AA-X-C-T1
5811781000

Highlights...

V581-5/3PC-I1-2CNA-AA-X-C-T1
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Flow L M: 1100 l/min
Industry: Industrial
Max Operating Pressure Range: 16 bar
Max Working Pressure: 16 bar
Protection class: IP65
Seat Seal Type: Soft seal
Standards and Regulations: ISO 5599-1

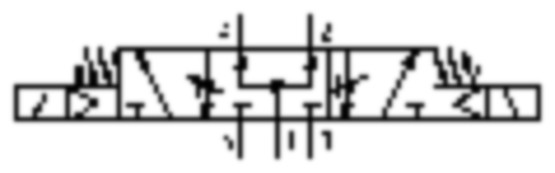

Switching principle: 5/3, pressurized center
Valve Configuration: Basic valve without pilot valve
Valve Pilot: External, Internal
Dimension: 9.06x4.33x2.17 (inches)

View other configurations.

AVENTICS 5/3-directional valve, Series 581, size 1 5811781000
