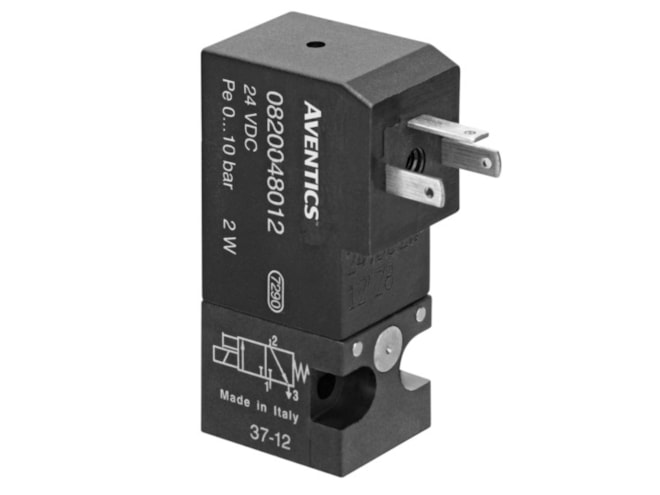

Aventics DO16-3/2NC-IS15-024AC-MOB Electric and Pneumatic Actuated Directional Valve

Poppet valve, Single valve. View other configurations.

$68.08
Part Numbers
  • DO16-3/2NC-IS15-024AC-MOB
  • 0820048028
Highlights...

Features

  • Activation: Electrically
  • Electrical Connection 2: ISO 15217, form C
  • Flow L M: 25 l/min
  • Housing Material: Polyphenylene sulfide, Polyamide fiber-glass reinforced
  • Industry: Industrial
  • Manual Override: with detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: 0 bar
  • Operating Voltage: 24 V AC
  • Scale size: DO16
  • Seat Seal Type: Soft seal
  • Switching principle: 3/2, with spring return
  • Valve Function: NC
  • Dimension: 1.57x1.38x0.59 (inches)
View other configurations.
AVENTICS 3/2-directional valve, Series DO16 0820048028
