Aventics DO16-3/2NO-IS15-024DC-MOI Electric and Pneumatic Actuated Directional Valve

Poppet valve, Single valve. View other configurations.

$61.04
Part Numbers
  • DO16-3/2NO-IS15-024DC-MOI
  • 0820048102
Highlights...

Features

  • Activation: Electrically
  • Electrical Connection 2: ISO 15217, form C
  • Flow L M: 20 l/min
  • Housing Material: Polyphenylene sulfide, Polyamide fiber-glass reinforced
  • Industry: Industrial
  • Manual Override: without detent
  • Max Working Pressure: 8 bar
  • Min Working Pressure: 0 bar
  • Operating Voltage: 24 V DC
  • Scale size: DO16
  • Seat Seal Type: Soft seal

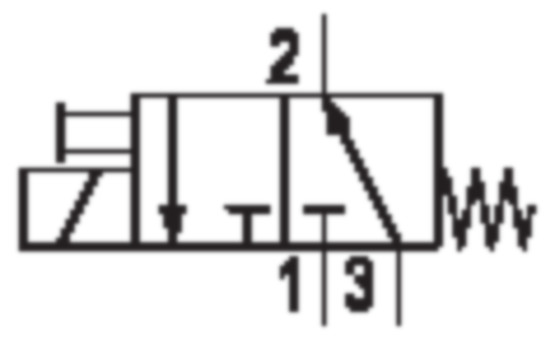

  • Switching principle: 3/2, with spring return
  • Valve Function: NO
  • Voltage tolerance: -10% / +15%
  • Wattage: 2 W
  • Dimension: 2.36x1.97x0.79 (inches)
View other configurations.
AVENTICS 3/2-directional valve, Series DO16 0820048102
