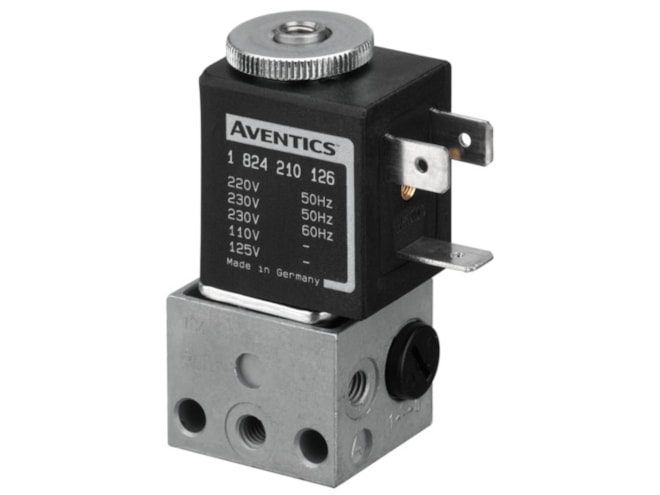

Aventics DO22-3/2NC-M005-230AC Electric and Pneumatic Actuated Directional Valve

Single valve, Poppet valve. View other configurations.

Call for pricing
Part Numbers
  • DO22-3/2NC-M005-230AC
  • 0820019001
Highlights...

Features

  • Activation: Electrically
  • Compatibility index: 14
  • Compressed air connection: M5
  • Compressed air connection output: M5
  • Electrical Connection 2: Form B, industry
  • Flow L M: 40 l/min
  • Housing Material: Die cast zinc
  • Industry: Industrial
  • Manual Override: with detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: 0 bar
  • Operating Voltage: 230 V AC
  • Scale size: DO22
  • Seat Seal Type: Soft seal
  • Switching principle: 3/2, with spring return
  • Valve Function: NC
View other configurations.
AVENTICS 3/2-directional valve, Series DO22 0820019001
