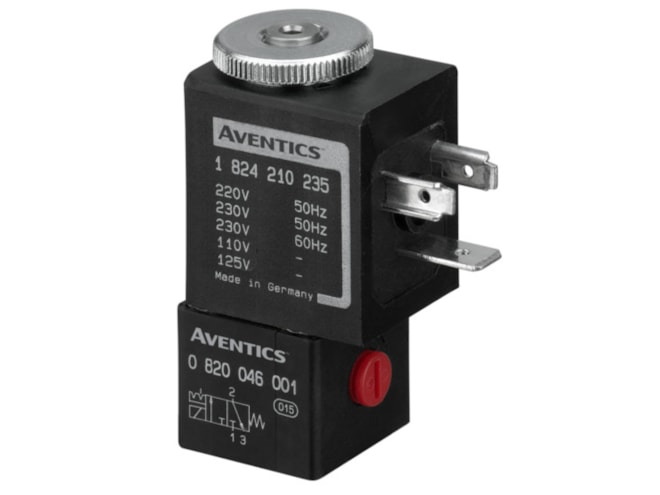

Aventics DO22-3/2NO-SPEZ-024DC Electric and Pneumatic Actuated Directional Valve

Single valve, Poppet valve. View other configurations.

Call for pricing
Part Numbers
  • DO22-3/2NO-SPEZ-024DC
  • 0820046101
Highlights...

Features

  • Activation: Electrically
  • Compatibility index: 14
  • Compressed air connection: Base plate
  • Compressed air connection output: Base plate
  • Electrical Connection 2: ISO 6952, form B
  • Flow L M: 48 l/min
  • Housing Material: Plastic
  • Industry: Industrial
  • Manual Override: with detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: 0 bar
  • Operating Voltage: 24 V DC
  • Scale size: DO22
  • Seat Seal Type: Soft seal
  • Switching principle: 3/2, with spring return
  • Valve Function: NO
  • Voltage tolerance: -10% / +10%
  • Wattage: 4.8 W
  • Dimension: 1.97x1.77x0.79 (inches)
View other configurations.
AVENTICS 3/2-directional valve, Series DO22 0820046101
