Aventics DO30-3/2NC-CNOM Electric and Pneumatic Actuated Directional Valve

Single valve, Poppet valve. View other configurations.

$64.64
Part Numbers
  • DO30-3/2NC-CNOM
  • 0820019985
Highlights...

Features

  • Activation: Electrically
  • Compatibility index: 15
  • Compressed air connection: CNOMO
  • Compressed air connection output: CNOMO
  • Electrical Connection 2: EN 175301-803, form A
  • Flow L M: 68 l/min
  • Housing Material: Plastic
  • Industry: Industrial
  • Manual Override: without detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: 0 bar
  • Scale size: DO30
  • Seat Seal Type: Soft seal

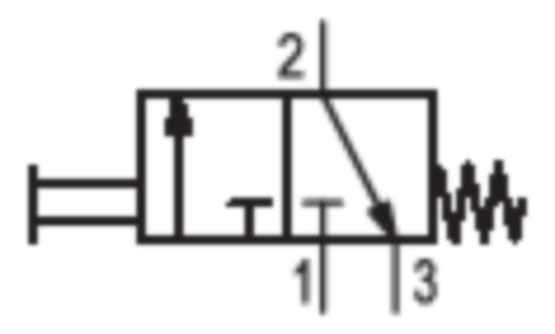

  • Switching principle: 3/2, with spring return
  • Valve Configuration: Basic valve without coil
  • Valve Function: NC
  • Dimension: 2.68x1.57x1.38 (inches)
View other configurations.
AVENTICS 3/2-directional valve, Series DO30 0820019985
