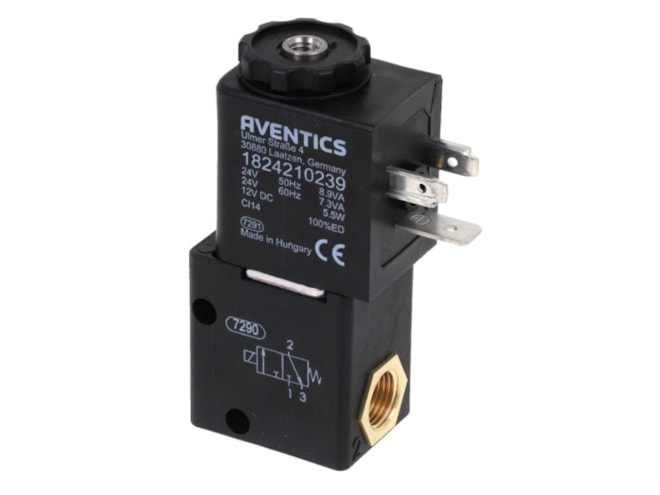

Aventics DO22-3/2NC-G018-024AC Electric and Pneumatic Actuated Directional Valve

Single valve, Poppet valve. View other configurations.

$75.52
Part Numbers
  • DO22-3/2NC-G018-024AC
  • 0820019312
Highlights...

Features

  • Activation: Electrically
  • Compatibility index: 14
  • Compressed air connection: G 1/8
  • Compressed air connection output: G 1/8
  • Electrical Connection 2: ISO 6952, form B
  • Flow L M: 72 l/min
  • Housing Material: Polyamide
  • Industry: Industrial
  • Manual Override: with detent
  • Max Working Pressure: 7 bar
  • Min Working Pressure: 0 bar
  • Operating Voltage: 24 V AC
  • Scale size: DO22
  • Seat Seal Type: Soft seal
  • Switching principle: 3/2, with spring return
  • Valve Function: NC
  • Dimension: 2.56x1.97x0.98 (inches)
View other configurations.
AVENTICS 3/2-directional valve, Series DO22 0820019312
