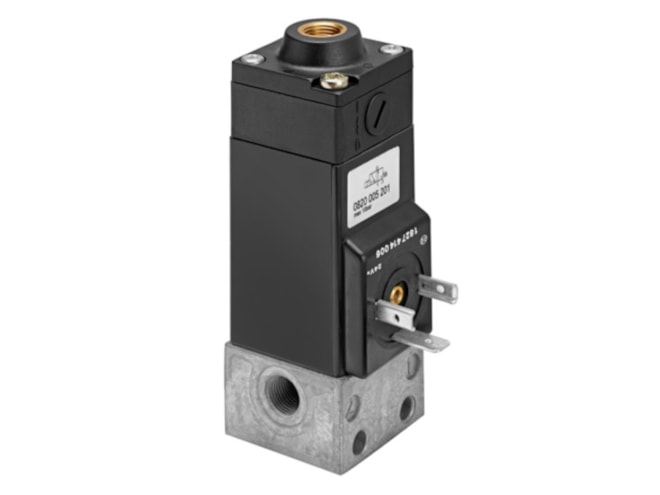

Aventics DO35-3/2NO-G018-024DC Electric and Pneumatic Actuated Directional Valve

Single valve, Poppet valve. View other configurations.

$107.97
Part Numbers
  • DO35-3/2NO-G018-024DC
  • 0820005201
Highlights...

Features

  • Activation: Electrically
  • Compressed air connection: G 1/8
  • Compressed air connection output: G 1/8
  • Electrical Connection 2: EN 175301-803, form A
  • Flow L M: 110 l/min
  • Housing Material: Die cast zinc
  • Industry: Industrial
  • Manual Override: with detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: 0 bar
  • Operating Voltage: 24 V DC
  • Scale size: DO35
  • Seat Seal Type: Soft seal
  • Switching principle: 3/2, with spring return
  • Valve Function: NO
  • Voltage tolerance: -10% / +10%
  • Wattage: 8 W
  • Dimension: 4.06x2.17x1.50 (inches)
View other configurations.
AVENTICS 3/2-directional valve, Series DO35 0820005201
