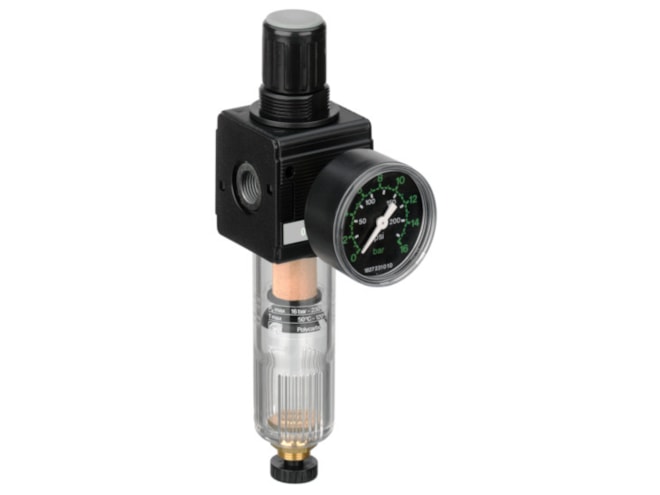

Aventics NL2-FRE-G038-GAU-100-SSS-HO-05,00 Combination Unit

FRL. View other configurations.

$239.32
Part Numbers
  • NL2-FRE-G038-GAU-100-SSS-HO-05,00
  • 0821300332
Highlights...

Features

  • Compressed air connection: G 3/8
  • Condensate drain: semi-automatic, open without pressure
  • Filter porosity: 5 µm
  • Flow L M: 1650 l/min
  • Industry: Industrial
  • Maintenance Unit Parts: Filter pressure regulator
  • Max Working Pressure: 16 bar
  • Regulation Range: 10 bar
  • Regulation Range min.: 0.5 bar
  • Version Manometer: with pressure gauge
  • Version Reservoir: reservoir, metal, with inspection glass
  • Dimension: 11.02x2.36x2.36 (inches)
View other configurations.
AVENTICS Filter pressure regulator, Series NL2-FRE 0821300332
