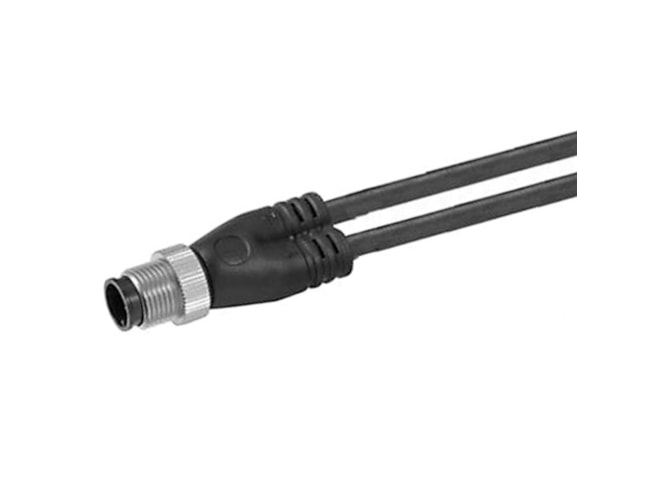

Aventics CON-RD-MS-M12-4-2000-PUR-OW-3-OW-3 Y-Plug Connector

View other configurations.

$32.40
Part Numbers
  • CON-RD-MS-M12-4-2000-PUR-OW-3-OW-3
  • R412021688
Highlights...

Features

  • Cable Exit 1: straight
  • Cable Length: 2 m
  • Coding: A-coded
  • Electrical Connection: M12x1
  • Electrical Connection Type: Plug
  • Electrical Connection Type 2: 2 x open cable ends
  • Industry: Industrial
  • Max Ambient Temperature: 80 °C
  • Min Ambient Temperature: -40 °C
  • Number of Lines: 4
  • Number of Poles: 4-pin
  • Number of Poles 2: 3-pin
  • Operating Voltage: 48 V AC/DC
  • Protection class: IP67
  • Shielding: unshielded
  • Dimension: 7.48x7.48x0.79 (inches)
View other configurations.
AVENTICS Y-Plug connector, series CON-RD R412021688
