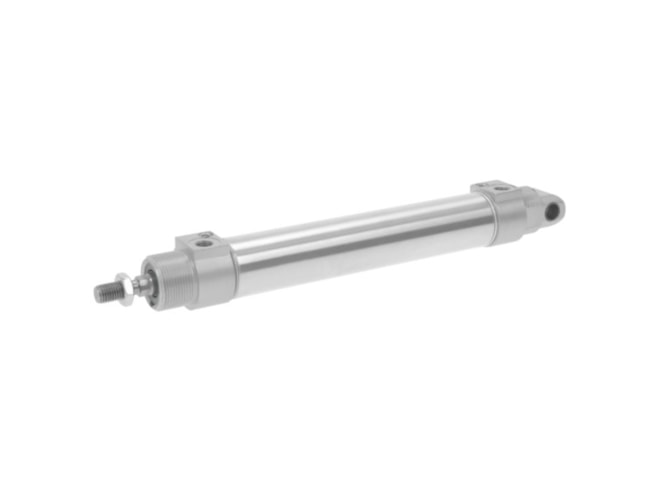

Aventics RPC-DA-063-0400-14-1-2-BAS Pneumatic Linear Actuator

Round cylinder, Piston rod cylinders. View other configurations.

Call for pricing
Part Numbers
  • RPC-DA-063-0400-14-1-2-BAS
  • R481609461
Highlights...

Features

  • Bore Size: 63 mm
  • Compressed air connection: G 3/8
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1960 N
  • Piston force retracting: 1765 N
  • Piston rod modification: single
  • Piston rod thread: M16x1,5
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 400 mm
  • Dimension: 24.80x3.15x3.15 (inches)
View other configurations.
AVENTICS Round cylinder, Series RPC R481609461
