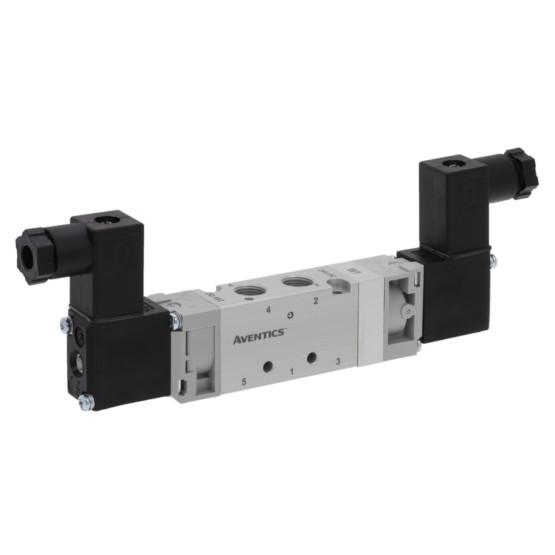

Aventics 52000009 Electric and Pneumatic Actuated Directional Valve

5/2, 5/3 spool valves, Single valve. View other configurations.

Call for pricing
Part Numbers
  • 52000009
  • 52000009
Highlights...

Features

  • Activation: Electrically
  • Compressed air connection output: G 1/8
  • Electrical Connection 2: EN 175301-803, form C
  • Flow L M: 600 l/min
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Manual Override: without detent
  • Max Working Pressure: 8 bar
  • Min Working Pressure: 1.5 bar
  • Operating Voltage: 24 V DC
  • Seat Seal Type: Soft seal

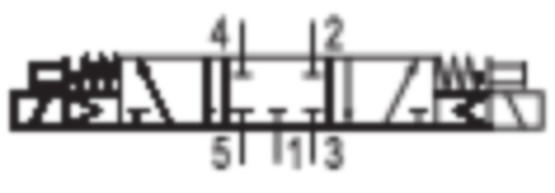

  • Switching principle: 5/3, closed center
  • Valve Function: Closed Center
  • Valve Pilot: Internal
  • Wattage: 1.6 W
View other configurations.
AVENTICS 5/3-directional valve, Series 520 52000009
