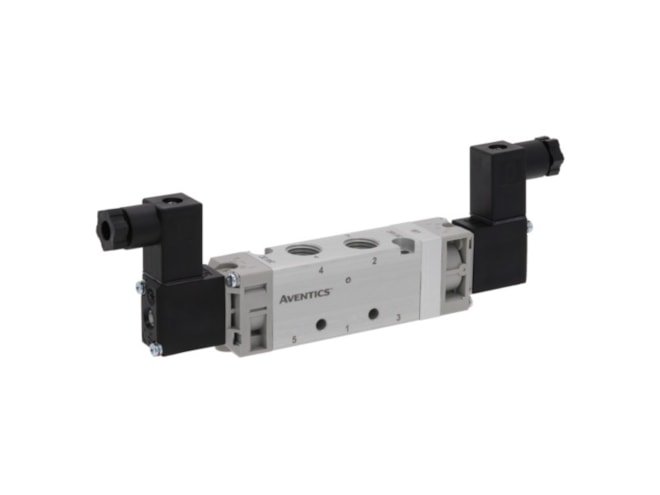

Aventics 52100011 Electric and Pneumatic Actuated Directional Valve

Single valve, 5/2, 5/3 spool valves. View other configurations.

Call for pricing
Part Numbers
  • 52100011
  • 52100011
Highlights...

Features

  • Activation: Electrically
  • Compressed air connection output: G 1/4
  • Electrical Connection 2: EN 175301-803, form C
  • Flow L M: 1050 l/min
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Manual Override: without detent
  • Max Working Pressure: 8 bar
  • Min Working Pressure: 1.5 bar
  • Operating Voltage: 110 V AC
  • Seat Seal Type: Soft seal
  • Switching principle: 5/3, closed center
  • Valve Function: Closed Center
  • Valve Pilot: Internal
View other configurations.
AVENTICS 5/3-directional valve, Series 521 52100011
