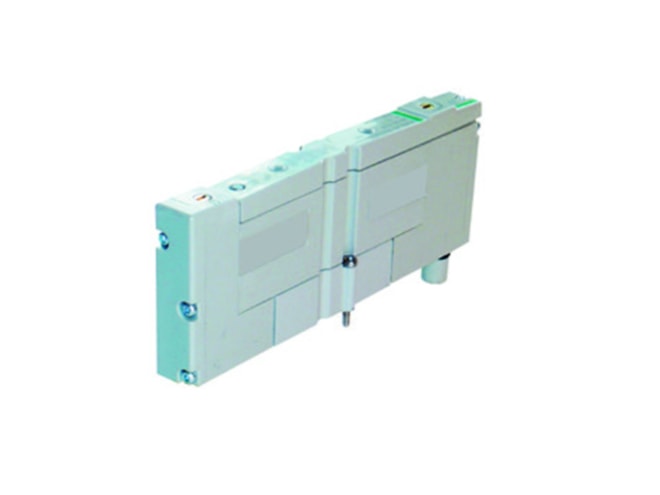

Aventics DISTRIBUTOR 501 TIGHT JOINTS 5/3 W3 PL Electric and Pneumatic Actuated Directional Valve

Single valve. View other configurations.

Aventics DISTRIBUTOR 501 TIGHT JOINTS 5/3 W3 PL Electric and Pneumatic Actuated Directional Valve — Aventics-DISTRIBUTOR 501 TIGHT JOINTS 5/3 W3 PL

Call for pricing

Part Numbers

DISTRIBUTOR 501 TIGHT JOINTS 5/3 W3 PL
R501A2B50M11BF1

Highlights...

DISTRIBUTOR 501 TIGHT JOINTS 5/3 W3 PL
By Aventics
FREE Shipping on orders of $1,000 or more
Call for availability

Features

Activation: Electrically
Flow L M: 365 l/min
Housing Material: Die cast zinc
Industry: Industrial
Manual Override: with detent
Max Working Pressure: 8 bar
Min Working Pressure: 2 bar
Operating Voltage: 24 V DC
Seat Seal Type: Soft seal
Valve Function: Exhausted Center
Valve Pilot: External
Voltage tolerance: -15% / +10%
Wattage: 0.68 W

View other configurations.

AVENTICS 5/3-directional valve, Series 501 R501A2B50M11BF1
