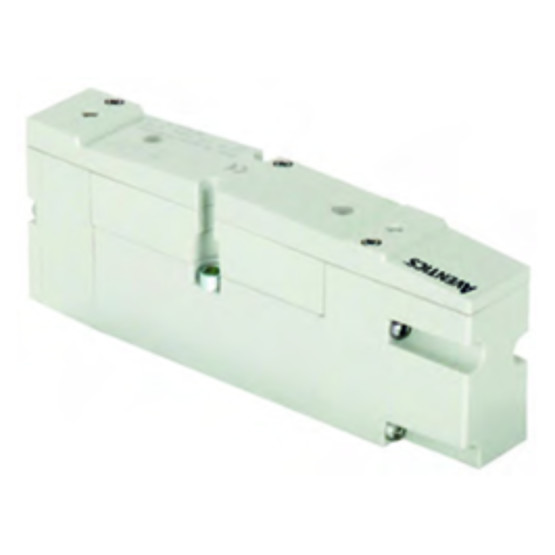

Aventics DOUBLE SOL 5/3 W2 SPOOL AND SLEEVE IMPUL Electric and Pneumatic Actuated Directional Valve

Single valve. View other configurations.

Call for pricing
Part Numbers
  • DOUBLE SOL 5/3 W2 SPOOL AND SLEEVE IMPUL
  • R503A1B70MA00F1
Highlights...

Features

  • Activation: Electrically
  • Flow L M: 1000 l/min
  • Housing Material: Die cast zinc
  • Industry: Industrial
  • Max Working Pressure: 8 bar
  • Min Working Pressure: 2 bar
  • Operating Voltage: 24 V DC
  • Seat Seal Type: metal/metal sealing
  • Valve Function: Pressurized Center
  • Valve Pilot: External
  • Voltage tolerance: -15% / +10%
  • Wattage: 1.4 W
View other configurations.
AVENTICS 5/3-directional valve, Series 503 R503A1B70MA00F1
