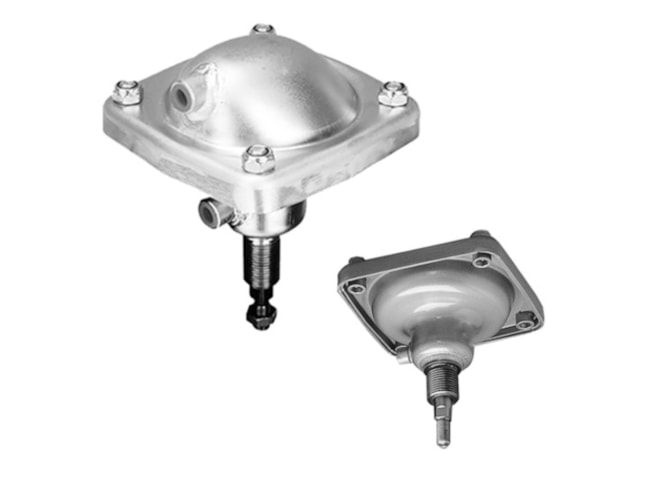

Aventics 113Q, 50H DA M16X1,5 Pneumatic Linear Actuator

Diaphragm-type cylinder, Piston rod cylinders. View other configurations.

Call for pricing
Part Numbers
  • 113Q, 50H DA M16X1,5
  • 1021200000
Highlights...

Features

  • Bore Size: 113 mm
  • Compressed air connection: G 1/4
  • Cylinder Function: Double-acting
  • Force min.: 100 N
  • Industry: Industrial
  • Max Working Pressure: 8 bar
  • Piston force extending: 6000 N
  • Piston force retracting: 5800 N
  • Piston rod thread: M16x1,5
  • Piston rod thread type: External thread
  • Stroke Length: 50 mm
  • Dimension: 10.63x8.27x8.27 (inches)
View other configurations.
AVENTICS Diaphragm-type cylinder, Series 102 1021200000
