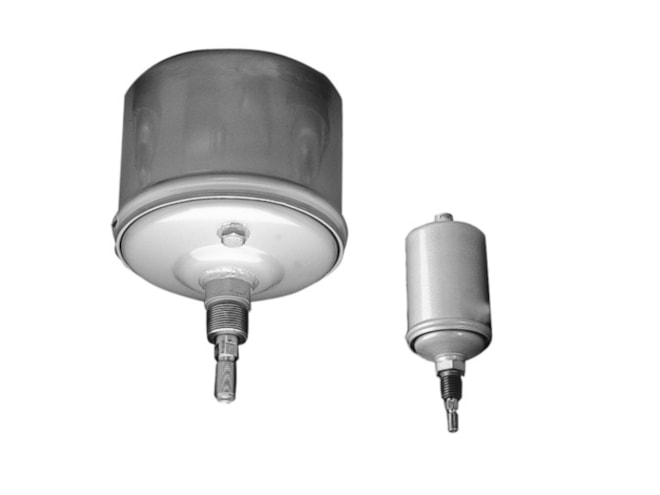

Aventics 60Q, 80H SA M12 Pneumatic Linear Actuator

Piston rod cylinders, Diaphragm-type cylinder. View other configurations.

Call for pricing
Part Numbers
  • 60Q, 80H SA M12
  • 1027100000
Highlights...

Features

  • Bore Size: 60 mm
  • Compressed air connection: G 1/4
  • Cylinder Function: Single-acting, retracted without pressure
  • Force max.: 320 N
  • Force min.: 130 N
  • Industry: Industrial
  • Max Working Pressure: 8 bar
  • Piston force extending: 1600 N
  • Piston rod thread: M12
  • Piston rod thread type: External thread
  • Stroke Length: 80 mm
  • Dimension: 10.63x3.54x3.54 (inches)
View other configurations.
AVENTICS Piston rod cylinders, Series 102 1027100000
