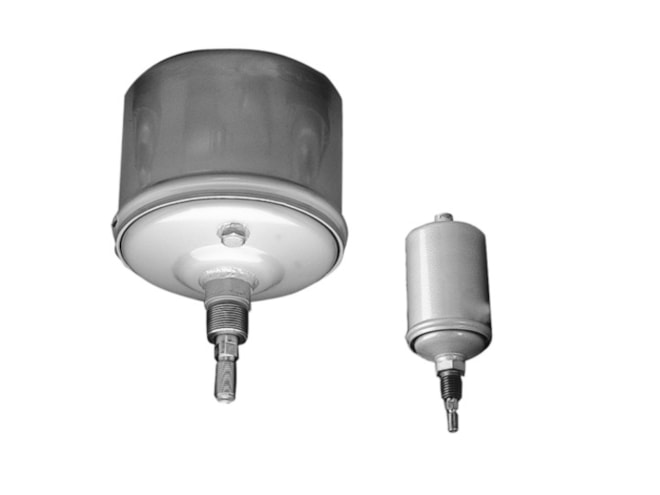

Aventics 250Q, 80H DA M24X2 Pneumatic Linear Actuator

Diaphragm-type cylinder, Piston rod cylinders. View other configurations.

Call for pricing
Part Numbers
  • 250Q, 80H DA M24X2
  • 1023300000
Highlights...

Features

  • Bore Size: 250 mm
  • Compressed air connection: G 1/2
  • Cylinder Function: Double-acting
  • Industry: Industrial
  • Max Working Pressure: 8 bar
  • Piston force extending: 25000 N
  • Piston force retracting: 24300 N
  • Piston rod thread: M24x2
  • Piston rod thread type: External thread
  • Stroke Length: 80 mm
  • Dimension: 3.90x3.90x3.90 (inches)
View other configurations.
AVENTICS Piston rod cylinders, Series 102 1023300000
