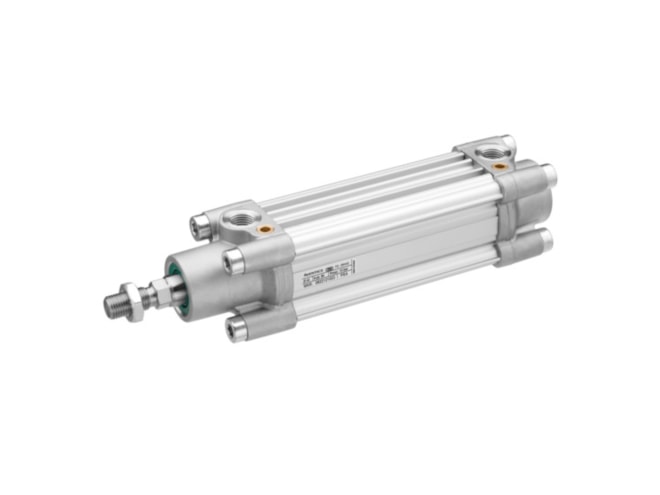

Aventics PRA-DA-040-0050-0312111100000000000000-B Pneumatic Linear Actuator

ISO cylinder, ISO 15552, Piston rod cylinders, Profile cylinder, Standard cylinders. View other configurations.

$173.53
Part Numbers
  • PRA-DA-040-0050-0312111100000000000000-B
  • R480041560
Highlights...

Features

  • Bore Size: 40 mm
  • Compressed air connection: G 1/4
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 790 N
  • Piston force retracting: 660 N
  • Piston rod modification: single
  • Piston rod thread: M12x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 50 mm
  • Dimension: 8.27x1.97x1.97 (inches)
View other configurations.
AVENTICS Profile cylinder ISO 15552, PRA series R480041560
