Aventics PRA-DA-050-0050-0312111100000000000000-B Pneumatic Linear Actuator

Piston rod cylinders, ISO cylinder, Standard cylinders, Profile cylinder, ISO 15552. View other configurations.

$199.79
Part Numbers
  • PRA-DA-050-0050-0312111100000000000000-B
  • R480041564
Highlights...

Features

  • Bore Size: 50 mm
  • Compressed air connection: G 1/4
  • Cushioning: Elastic cushioning

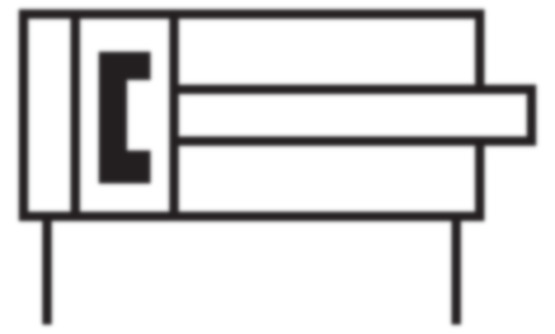

  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1235 N
  • Piston force retracting: 1035 N
  • Piston rod modification: single
  • Piston rod thread: M16x1,5
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 50 mm
  • Dimension: 9.06x2.76x2.76 (inches)
View other configurations.
AVENTICS Profile cylinder ISO 15552, PRA series R480041564
