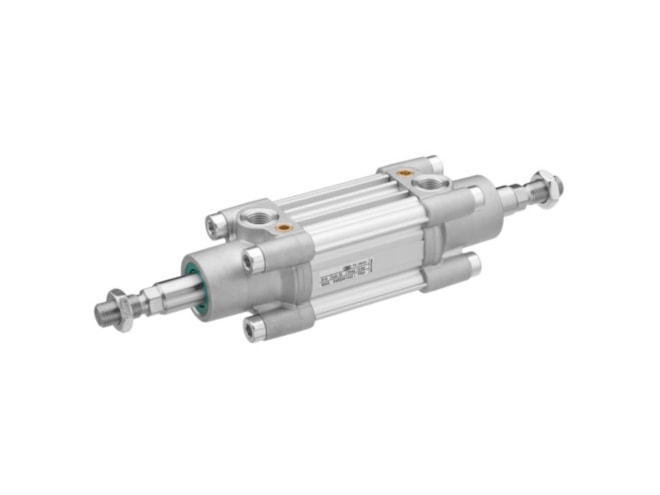

Aventics PRA-DA-063-0020-1322311100000000000000-B Pneumatic Linear Actuator

Piston rod cylinders, ISO 15552, ISO cylinder, Profile cylinder, Standard cylinders. View other configurations.

Call for pricing
Part Numbers
  • PRA-DA-063-0020-1322311100000000000000-B
  • R480176423
Highlights...

Features

  • Bore Size: 63 mm
  • Compressed air connection: 3/8 NPT
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1765 N
  • Piston force retracting: 1765 N
  • Piston rod modification: through
  • Piston rod thread: 3/4-16 UNF
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 50.8 mm
View other configurations.
AVENTICS Profile cylinder ISO 15552, Series PRA - inch R480176423
