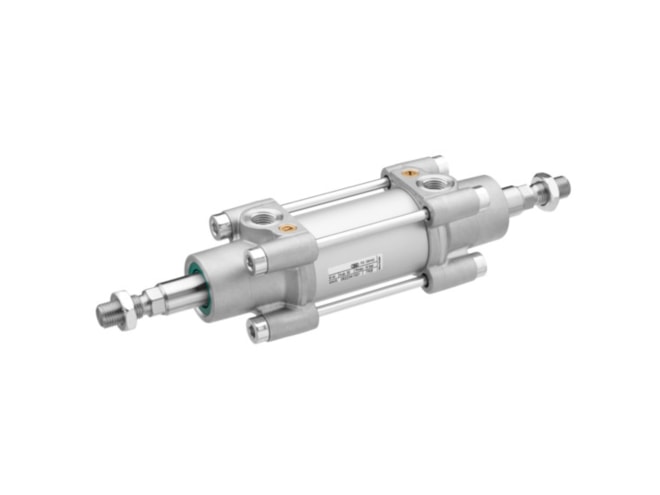

Aventics TRB-DA-040-0160-0122311100000000000000-B Pneumatic Linear Actuator

Piston rod cylinders, ISO cylinder, Low friction, Tie rod cylinder, ISO 15552. View other configurations.

Call for pricing
Part Numbers
  • TRB-DA-040-0160-0122311100000000000000-B
  • 0822341506
Highlights...

Features

  • Bore Size: 40 mm
  • Compressed air connection: G 1/4
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 660 N
  • Piston force retracting: 660 N
  • Piston rod modification: through
  • Piston rod thread: M12x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 160 mm
  • Dimension: 12.72x2.09x2.09 (inches)
View other configurations.
AVENTICS Tie rod cylinder ISO 15552, Series TRB 0822341506
