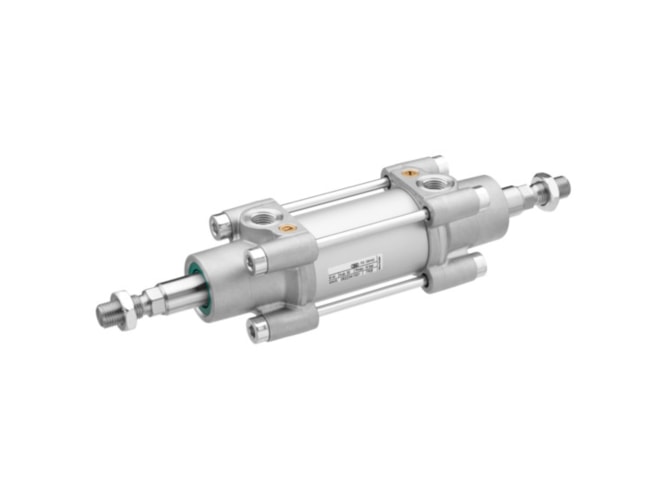

Aventics TRB-DA-063-0025-0122311100000000000000-B Pneumatic Linear Actuator

Low friction, Piston rod cylinders, Tie rod cylinder, ISO cylinder, ISO 15552. View other configurations.

Call for pricing
Part Numbers
  • TRB-DA-063-0025-0122311100000000000000-B
  • 0822343501
Highlights...

Features

  • Bore Size: 63 mm
  • Compressed air connection: G 3/8
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1765 N
  • Piston force retracting: 1765 N
  • Piston rod modification: through
  • Piston rod thread: M16x1,5
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
  • Dimension: 13.19x2.95x2.95 (inches)
View other configurations.
AVENTICS Tie rod cylinder ISO 15552, Series TRB 0822343501
