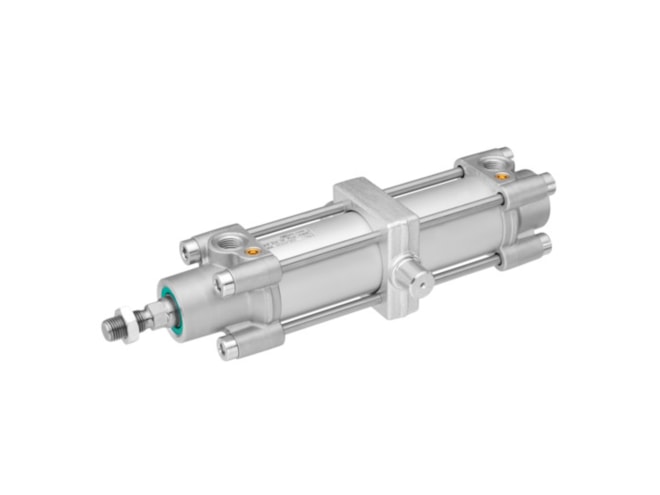

Aventics TRB-DA-040-0400-0122111100000010283000-B Pneumatic Linear Actuator

Low friction, ISO 15552, ISO cylinder, Piston rod cylinders, Tie rod cylinder. View other configurations.

Call for pricing
Part Numbers
  • TRB-DA-040-0400-0122111100000010283000-B
  • 0822341909
Highlights...

Features

  • Bore Size: 40 mm
  • Compressed air connection: G 1/4
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Features: with trunnion mounting
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 790 N
  • Piston force retracting: 660 N
  • Piston rod modification: single
  • Piston rod thread: M12x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 400 mm
  • Dimension: 22.05x3.94x2.36 (inches)
View other configurations.
AVENTICS Tie rod cylinder ISO 15552, Series TRB 0822341909
