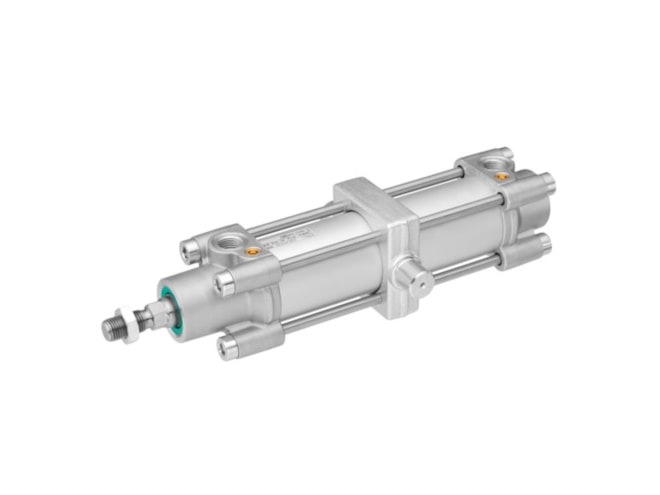

Aventics TRB-DA-125-0250-0122111100000020270000-B Pneumatic Linear Actuator

ISO cylinder, Piston rod cylinders, Tie rod cylinder, ISO 15552, Low friction. View other configurations.

Call for pricing
Part Numbers
  • TRB-DA-125-0250-0122111100000020270000-B
  • 7472412343
Highlights...

Features

  • Bore Size: 125 mm
  • Compressed air connection: G 1/2
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Features: with trunnion mounting
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 7725 N
  • Piston force retracting: 7220 N
  • Piston rod modification: single
  • Piston rod thread: M27x2
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 250 mm
  • Dimension: 21.14x8.27x6.38 (inches)
View other configurations.
AVENTICS Tie rod cylinder ISO 15552, Series TRB 7472412343
