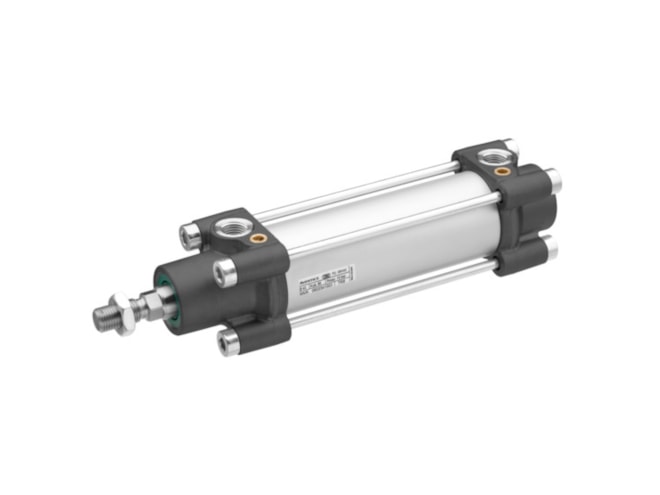

Aventics TRB-DA-040-0250-0122111200000000000200-B Pneumatic Linear Actuator

ISO cylinder, Tie rod cylinder, Low friction, ISO 15552, Piston rod cylinders. View other configurations.

Call for pricing
Part Numbers
  • TRB-DA-040-0250-0122111200000000000200-B
  • R480692070
Highlights...

Features

  • Bore Size: 40 mm
  • Compressed air connection: G 1/4
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, High corrosion
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 790 N
  • Piston force retracting: 660 N
  • Piston rod modification: single
  • Piston rod thread: M12x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Metal Scraper
  • Stroke Length: 250 mm
View other configurations.
AVENTICS Tie rod cylinder ISO 15552, Series TRB R480692070
