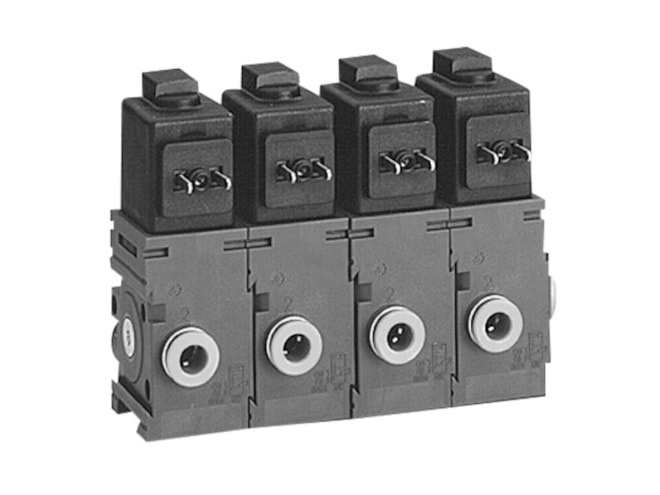

Aventics V579-3/2NC-DA06-024AC-1,2-RV1 Electric and Pneumatic Actuated Directional Valve

Poppet valve, Single valve, Pipe connection. View other configurations.

Call for pricing
Part Numbers
  • V579-3/2NC-DA06-024AC-1,2-RV1
  • 5790205220
Highlights...

Features

  • Activation: Electrically
  • Compressed air connection output: Ø 6x1
  • Electrical Connection 2: ISO 15217, form C
  • Flow L M: 50 l/min
  • Housing Material: Polyamide
  • Industry: Industrial
  • Manual Override: with detent
  • Max Working Pressure: 7 bar
  • Min Working Pressure: 0 bar
  • Operating Voltage: 24 V AC
  • Seat Seal Type: Soft seal
  • Switching principle: 3/2, with spring return
  • Valve Function: NC
  • Dimension: 3.15x1.97x1.38 (inches)
View other configurations.
AVENTICS 3/2-directional valve, Series 579 5790205220
