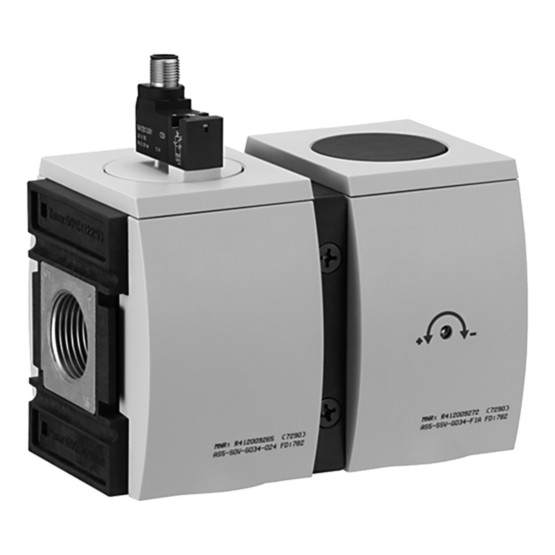

Aventics AS5-SSU-G034-230 Combination Unit

View other configurations.

Call for pricing
Part Numbers
  • AS5-SSU-G034-230
  • R412009280
Highlights...

Features

  • Activation: Electrically
  • Compressed air connection: G 3/4
  • Electrical Connection: ISO 15217, form C
  • Flow L M: 8750 l/min
  • Industry: Industrial
  • Maintenance Unit Parts: 3/2-directional valve, Filling valve
  • Max Working Pressure: 10 bar
  • Operating Voltage: 220-230 V AC
  • Operational voltage AC at 50 Hz: 220 V
  • Valve Configuration: Basic valve with pilot valve
  • Dimension: 8.66x7.87x6.69 (inches)
View other configurations.
AVENTICS Filling unit, electrically operated, Series AS5-SSU R412009280
