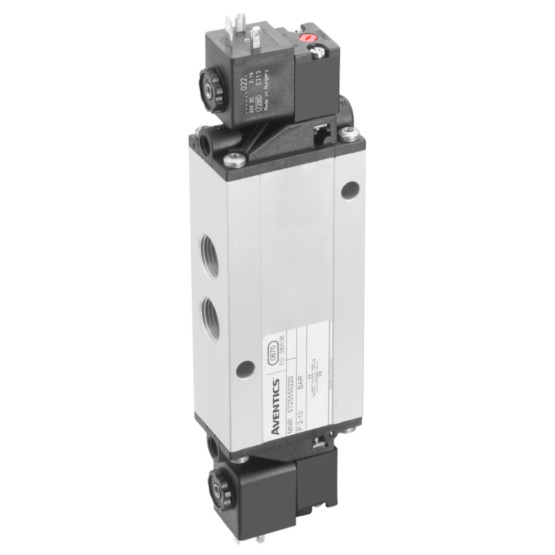

Aventics CD12-5/2XX-DO-230AC-I-G012-G012-EN175301 Electric and Pneumatic Actuated Directional Valve

Spool valve, Single valve. View other configurations.

Call for pricing
Part Numbers
  • CD12-5/2XX-DO-230AC-I-G012-G012-EN175301
  • 5725555280
Highlights...

Features

  • Activation: Electrically
  • Compatibility index: 13, 14
  • Compressed air connection output: G 1/2
  • Electrical Connection 2: EN 175301-803, form A
  • Flow L M: 4100 l/min
  • Housing Material: Aluminum, Polyamide fiber-glass reinforced
  • Industry: Industrial
  • Manual Override: with detent, without detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: 2 bar
  • Operating Temperature: -25 °C cold-resistant
  • Operating Voltage: 230 V AC
  • Seat Seal Type: Soft seal

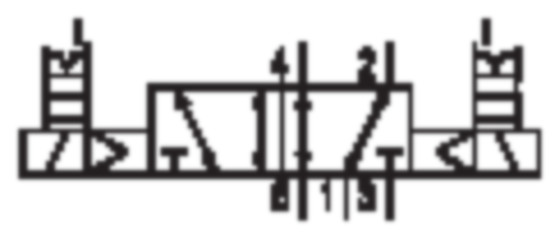

  • Switching principle: 5/2, double solenoid
  • Valve Pilot: Internal
  • Dimension: 10.91x3.46x2.36 (inches)
View other configurations.
AVENTICS 5/2-directional valve, Series CD12 5725555280
