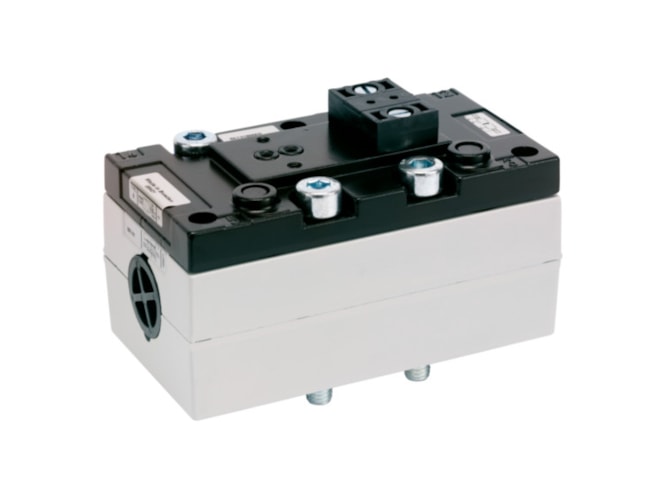

Aventics V581-5/2SR-I3-1CNA-AA-X-C-T0-ATEX Electric and Pneumatic Actuated Directional Valve

View other configurations.

Call for pricing
Part Numbers
  • V581-5/2SR-I3-1CNA-AA-X-C-T0-ATEX
  • 5813180100
Highlights...

Features

  • Activation: Electrically
  • Certifications: ATEX
  • Flow L M: 4800 l/min
  • Industry: Industrial
  • Max Operating Pressure Range: 16 bar
  • Max Working Pressure: 16 bar
  • Protection class: IP65
  • Seat Seal Type: Soft seal
  • Standards and Regulations: ISO 5599-1
  • Switching principle: 5/2, with spring return
  • Valve Configuration: Basic valve without pilot valve
  • Valve Pilot: External, Internal
  • Dimension: 4.72x2.76x2.76 (inches)
View other configurations.
AVENTICS 5/2-directional valve, Series 581, size 3 5813180100
