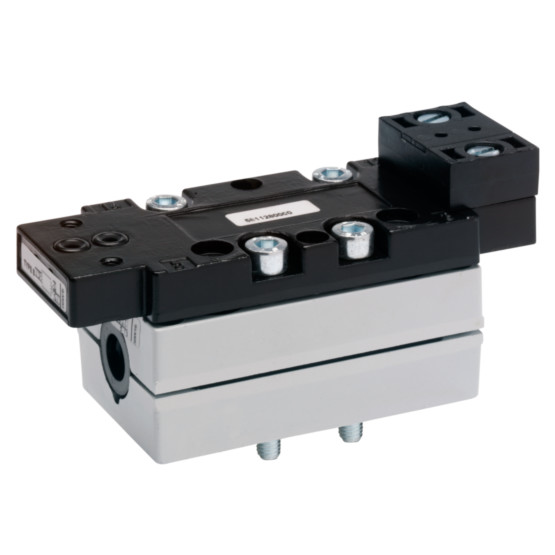

Aventics V581-5/2DP-I1-2CNA-AA-X-C-T0-ATEX Electric and Pneumatic Actuated Directional Valve

View other configurations.

Call for pricing
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • V581-5/2DP-I1-2CNA-AA-X-C-T0-ATEX
  • 5811280100
Highlights...

Features

  • Activation: Electrically
  • Certifications: ATEX
  • Flow L M: 1400 l/min
  • Industry: Industrial
  • Max Operating Pressure Range: 16 bar
  • Max Working Pressure: 16 bar
  • Protection class: IP65
  • Seat Seal Type: Soft seal
  • Standards and Regulations: ISO 5599-1

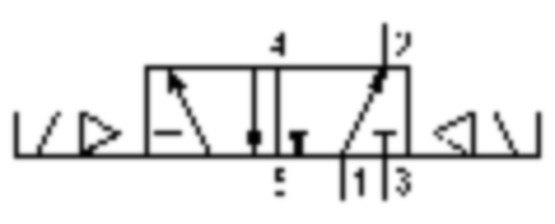

  • Switching principle: 5/2, double solenoid
  • Valve Configuration: Basic valve without pilot valve
  • Valve Pilot: External, Internal
  • Dimension: 3.15x1.77x1.57 (inches)
View other configurations.
AVENTICS 5/2-directional valve, Series 581, size 1 5811280100
