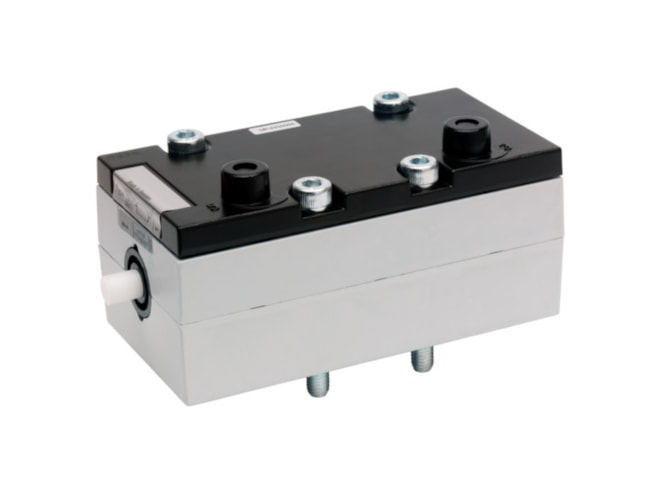

Aventics V581-5/2DP-I4-AIR-AA-M-T0-ATEX Electric and Pneumatic Actuated Directional Valve

View other configurations.

Call for pricing
Part Numbers
  • V581-5/2DP-I4-AIR-AA-M-T0-ATEX
  • 5814330100
Highlights...

Features

  • Activation: Pneumatically
  • Certifications: ATEX
  • Compressed air connection output: Base plate ISO 5599-1
  • Flow L M: 6000 l/min
  • Industry: Industrial
  • Manual Override: with detent
  • Max Operating Pressure Range: 16 bar
  • Max Working Pressure: 16 bar
  • Seat Seal Type: Soft seal
  • Standards and Regulations: ISO 5599-1
  • Switching principle: 5/2, double solenoid
View other configurations.
AVENTICS 5/2-directional valve, Series 581, size 4 5814330100
