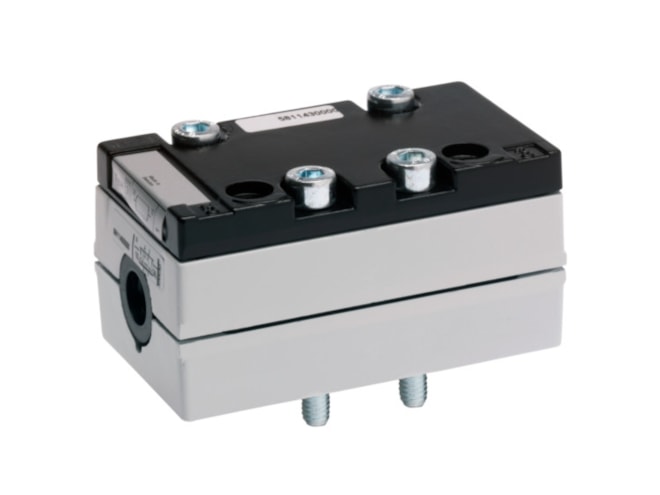

Aventics V581-5/3CC-I3-AIR-AA-X-T0-ATEX Electric and Pneumatic Actuated Directional Valve

View other configurations.

Call for pricing
Part Numbers
  • V581-5/3CC-I3-AIR-AA-X-T0-ATEX
  • 5813430100
Highlights...

Features

  • Activation: Pneumatically
  • Certifications: ATEX
  • Compressed air connection output: Base plate ISO 5599-1
  • Flow L M: 4100 l/min
  • Industry: Industrial
  • Max Operating Pressure Range: 16 bar
  • Max Working Pressure: 16 bar
  • Seat Seal Type: Soft seal
  • Standards and Regulations: ISO 5599-1
  • Switching principle: 5/3, closed center
View other configurations.
AVENTICS 5/3-directional valve, Series 581, size 3 5813430100
