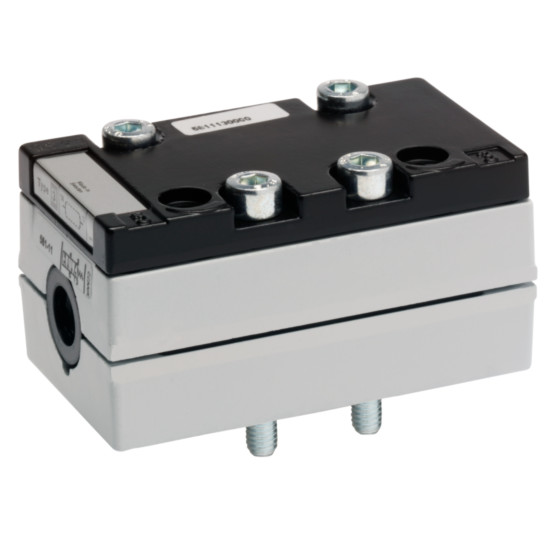

Aventics V581-5/2SR-I1-AIR-AA-X-T0-ATEX Electric and Pneumatic Actuated Directional Valve

View other configurations.

Aventics V581-5/2SR-I1-AIR-AA-X-T0-ATEX Electric and Pneumatic Actuated Directional Valve — Aventics-V581-5/2SR-I1-AIR-AA-X-T0-ATEX

Call for pricing

Part Numbers

V581-5/2SR-I1-AIR-AA-X-T0-ATEX
5811330100

Highlights...

V581-5/2SR-I1-AIR-AA-X-T0-ATEX
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Pneumatically
Certifications: ATEX
Compressed air connection output: Base plate ISO 5599-1
Flow L M: 1400 l/min
Industry: Industrial
Max Operating Pressure Range: 16 bar
Max Working Pressure: 16 bar
Seat Seal Type: Soft seal
Standards and Regulations: ISO 5599-1

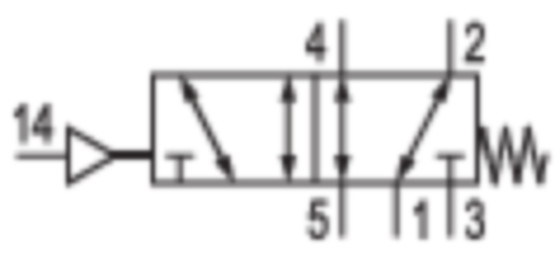

Switching principle: 5/2, with spring return

View other configurations.

AVENTICS 5/2-directional valve, Series 581, size 1 5811330100
