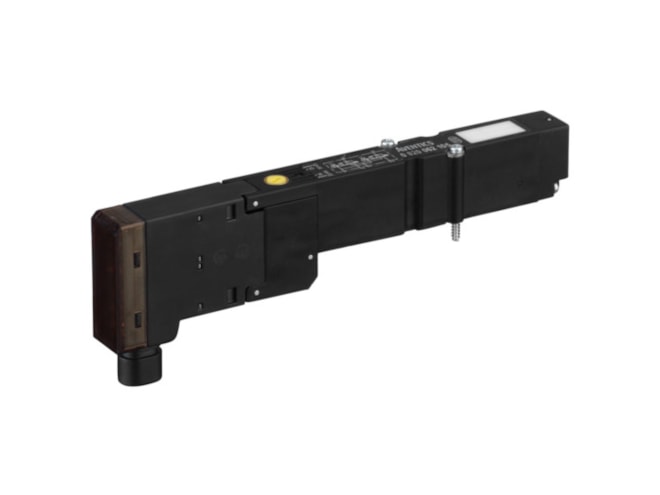

Aventics 0820062501 Electric and Pneumatic Actuated Directional Valve

Spool valve, Base plate valve, Plate connection, Single valve. View other configurations.

$209.20
Part Numbers
  • 0820062501
  • 0820062501
Highlights...

Features

  • Activation: Electrically
  • Flow L M: 400 l/min
  • Housing Material: Polyamide
  • Industry: Industrial
  • Manual Override: with detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: -0.9 bar
  • Operating Voltage: 24 V DC
  • Seat Seal Type: Soft seal
  • Switching principle: 5/2, double solenoid
  • Valve Pilot: External, Internal
  • Voltage tolerance: -10% / +10%
  • Wattage: 0.55 W
  • Dimension: 4.53x0.39x1.57 (inches)
View other configurations.
AVENTICS 5/2-directional valve, Series HF04 0820062501
