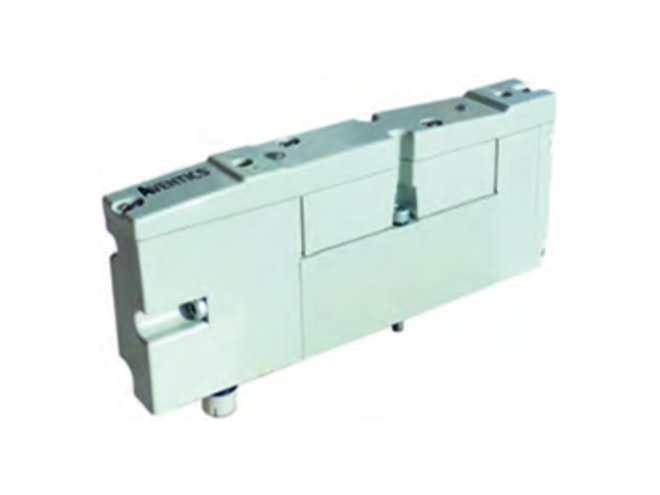

Aventics DIST. RUBBER PACKED 502 5/3 PLUG-IN Electric and Pneumatic Actuated Directional Valve

Single valve. View other configurations.

Call for pricing
Part Numbers
  • DIST. RUBBER PACKED 502 5/3 PLUG-IN
  • R502A2B70M11BF1
Highlights...

Features

  • Activation: Electrically
  • Flow L M: 490 l/min
  • Housing Material: Die cast zinc
  • Industry: Industrial
  • Manual Override: with detent
  • Max Working Pressure: 8 bar
  • Min Working Pressure: 2 bar
  • Operating Voltage: 24 V DC
  • Seat Seal Type: Soft seal
  • Valve Function: Pressurized Center
  • Valve Pilot: External
  • Voltage tolerance: -15% / +10%
  • Wattage: 1.1 W
View other configurations.
AVENTICS 5/3-directional valve, Series 502 R502A2B70M11BF1
