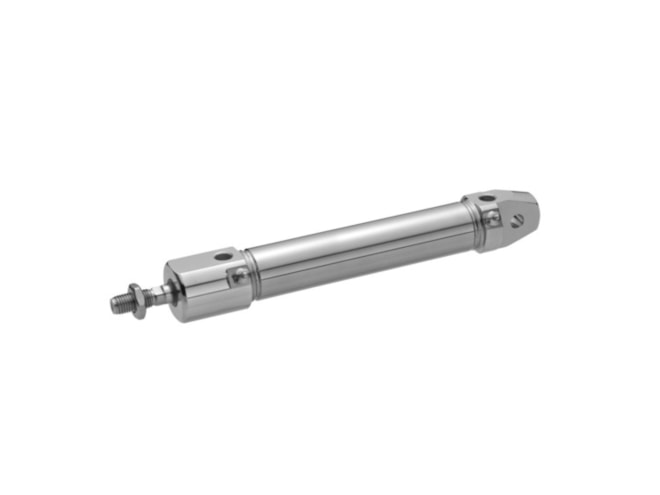

Aventics CSL-DA-025-0400-1-PC-1-0-000-FRE-BAS Pneumatic Linear Actuator

Piston rod cylinders, suitable for use in food processing, ISO 6432, Round cylinder, ISO cylinder, Standard cylinders. View other configurations.

Call for pricing
Part Numbers
  • CSL-DA-025-0400-1-PC-1-0-000-FRE-BAS
  • R412020528
Highlights...

Features

  • Bore Size: 25 mm
  • Compressed air connection: G 1/8
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Features: Version: hygienic design
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, suitable for use in food processing, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 309 N
  • Piston force retracting: 260 N
  • Piston rod modification: single
  • Piston rod thread: M10x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Food-Grade Scraper
  • Stroke Length: 400 mm
View other configurations.
AVENTICS Stainless Steel Round Cylinder, Series CSL-RD R412020528
