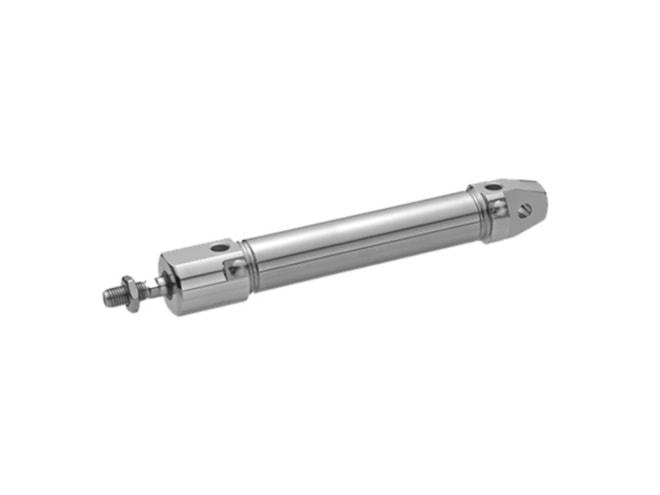

Aventics CSL-DA-032-0080-1-AC-1-0-000-FRE-BAS Pneumatic Linear Actuator

ISO cylinder, suitable for use in food processing, Round cylinder, Standard cylinders, ISO 6432, Piston rod cylinders. View other configurations.

Call for pricing
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • CSL-DA-032-0080-1-AC-1-0-000-FRE-BAS
  • R481624898
Highlights...

Features

  • Bore Size: 32 mm
  • Compressed air connection: G 1/8
  • Cushioning: Pneumatic pre-adjusted cushioning
  • Cylinder Features: Version: hygienic design
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, suitable for use in food processing, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 505 N
  • Piston force retracting: 435 N
  • Piston rod modification: single
  • Piston rod thread: M10x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Heat-Resistant Scraper
  • Stroke Length: 80 mm
View other configurations.
AVENTICS Stainless Steel Round Cylinder, Series CSL-RD R481624898
