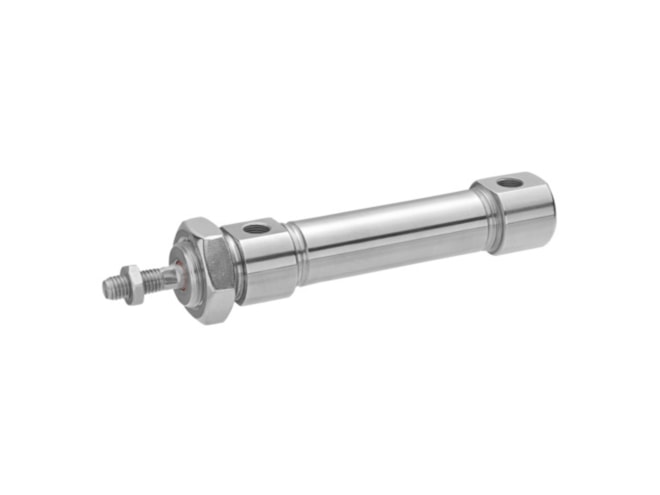

Aventics CSL-DA-025-0125-1-SC-1-0-000-SRT-BAS Pneumatic Linear Actuator

Round cylinder, suitable for use in food processing, ISO cylinder, Piston rod cylinders, ISO 6432, Standard cylinders. View other configurations.

Call for pricing
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • CSL-DA-025-0125-1-SC-1-0-000-SRT-BAS
  • R412021872
Highlights...

Features

  • Bore Size: 25 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Features: Version: short type
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, suitable for use in food processing, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 309 N
  • Piston force retracting: 260 N
  • Piston rod modification: single
  • Piston rod thread: M10x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Food-Grade Scraper
  • Stroke Length: 125 mm
  • Dimension: 9.84x1.57x1.57 (inches)
View other configurations.
AVENTICS Stainless Steel Round Cylinder, Series CSL-RD R412021872
