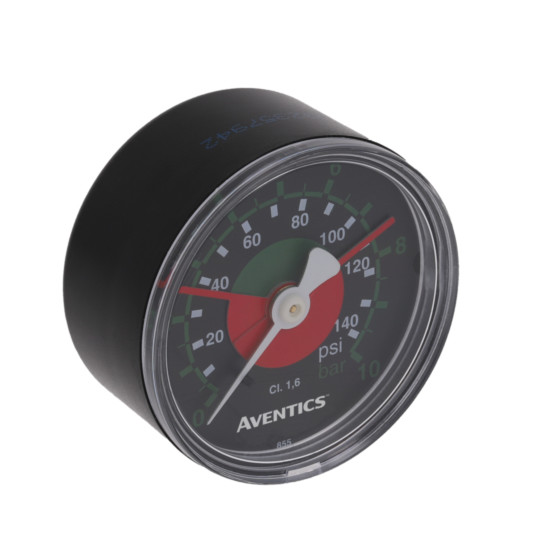

Aventics PG1-ROB-G018-SNL-ADJ Pressure Gauge

Features

• Background color: Black
• Compressed air connection: G 1/8
• Display range max.: 10 bar
• Display range min.: 0 bar
• Housing Material: Acrylonitrile butadiene styrene
• Industry: Industrial
• Manometer housing diameter: 40 mm
• Max Ambient Temperature: 60 °C
• Max Working Pressure: 10 bar
• Min Ambient Temperature: -40 °C
• Pressure Gauge Grade: 1,6
• Range of application max.: 8 bar
• Range of application min.: 0 bar
• Scale value: 0.5
• Unit primary scale: bar
• Version Manometer: Bourdon tube pressure gauge, Back port, with adjustable work area display
• Dimension: 1.97x1.77x1.77 (inches)
