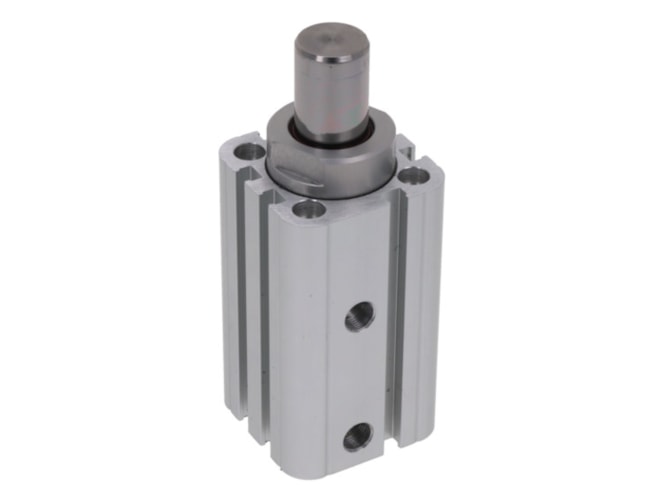

Aventics CCI-DS-050-30-ST-TR Pneumatic Linear Actuator

Piston rod cylinders, multi-position cylinder, Compact cylinder, Standard cylinders. View other configurations.

$208.93
Part Numbers
  • CCI-DS-050-30-ST-TR
  • R452000678
Highlights...

Features

  • Bore Size: 50 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Features: Axle pivot version
  • Cylinder Function: double-acting with spring return, extended without pressure
  • Force max.: 82 N
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1237 N
  • Piston force retracting: 730 N
  • Stroke Length: 30 mm
View other configurations.
AVENTICS Compact cylinder, Series CCI-SC R452000678
